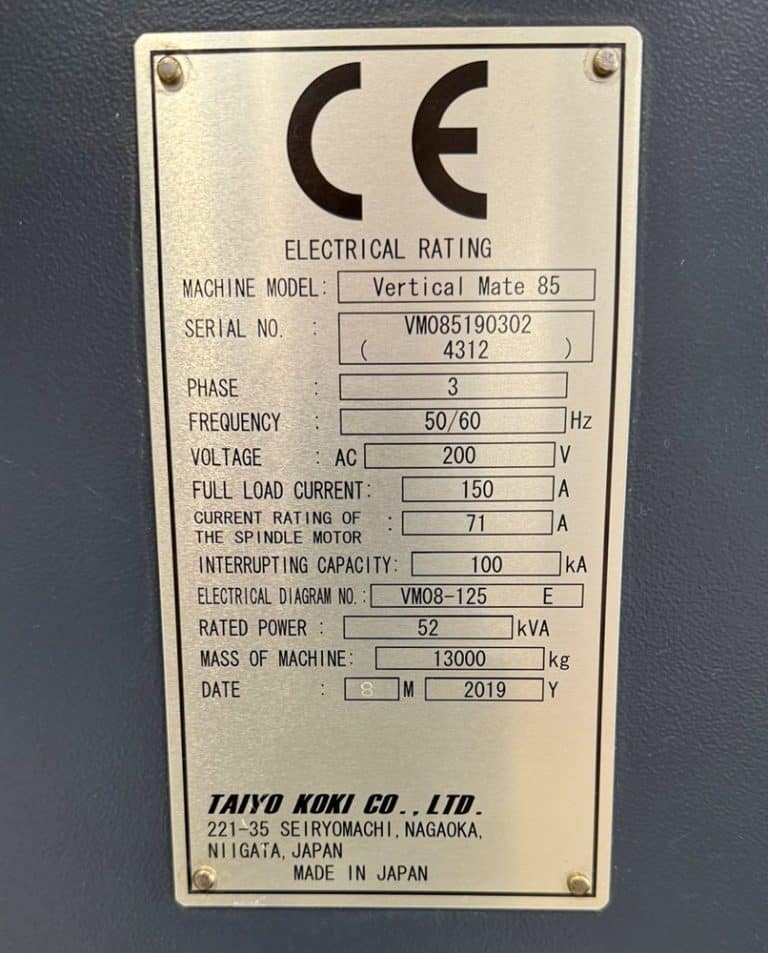

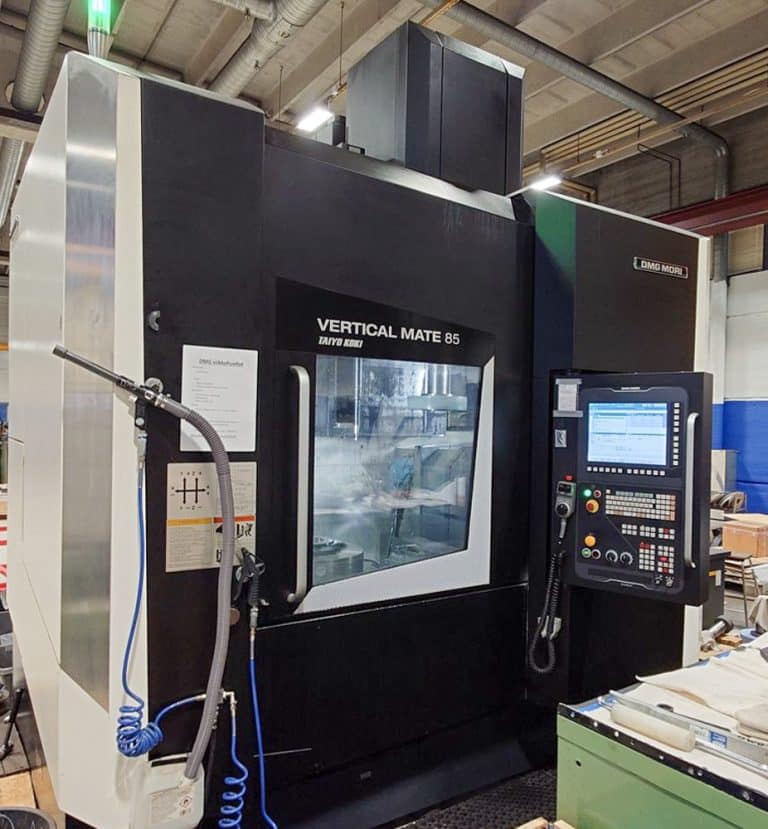

Operation System: FANUC F32iB (MAPPS IV)
CAPACITY
Internal grinding diameter: Ø50 – Ø800
External grinding diameter: max. Ø800
Grinding lenght (bore diameter): 325 (Ø250 or smaller)
Grinding lenght (bore diameter): 400 (Ø250 or greater, quill length 250)
Grinding lenght (bore diameter): 485 (Ø250 or greater, quill length 350)
Grinding lenght (O.D.): 400 (for plain grinding, quill length 250)
Swing of work spindle (mm): max. Ø850
Distance from table to workpiece top surface (mm): 600
Max. load on work table (Kg.): 700

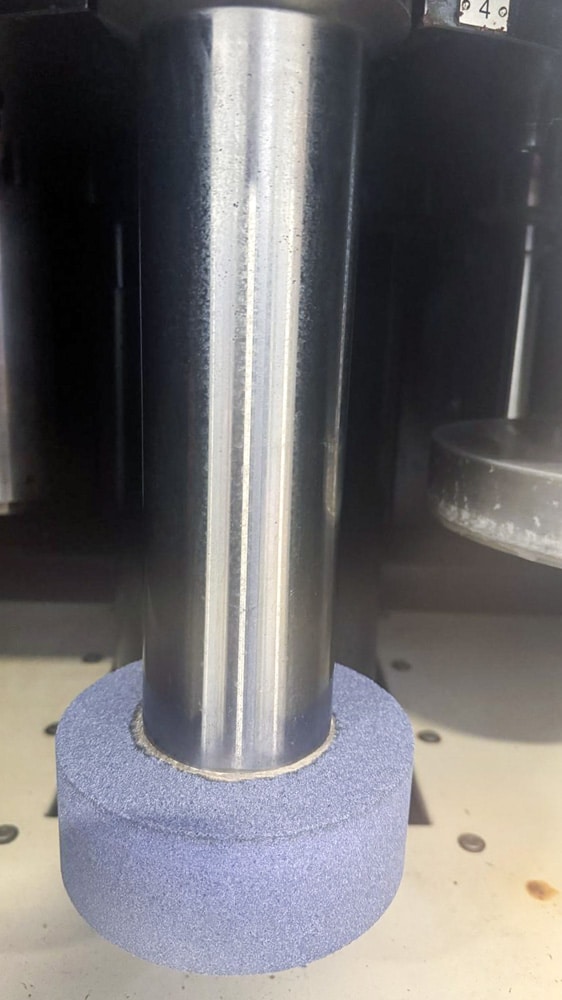

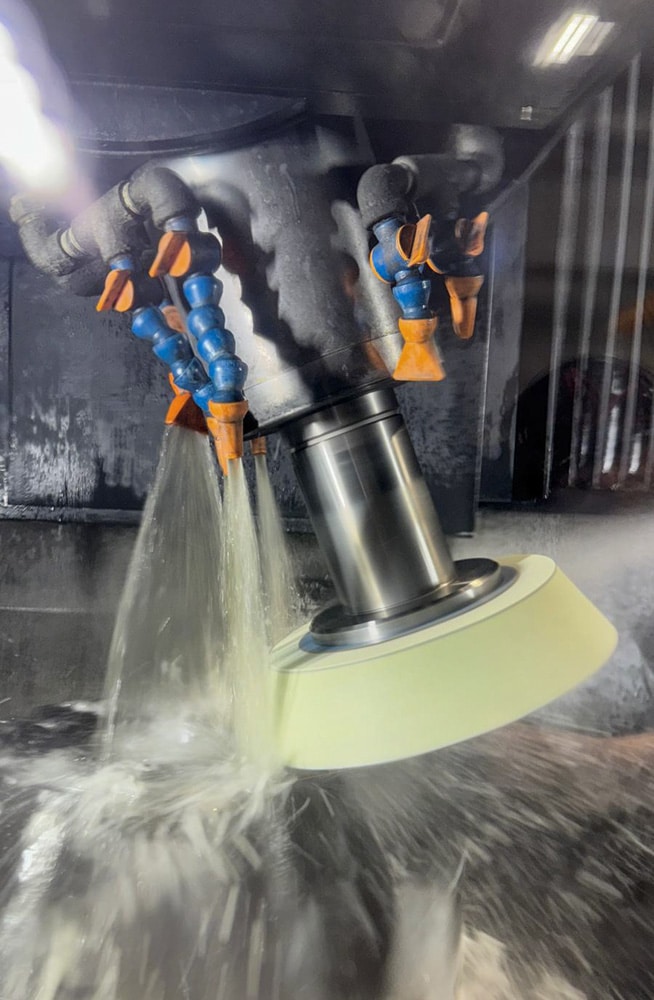

WHEEL SPINDLE
Wheel spindle speed (rpm): 2.800 – 9.000
Wheel diameter (mm): Ø45 – Ø305
Lubrication method: Sealed-in grease
Taper hole: HSK-A100
Output rating (continous rating): 11 kW
WHEELHEAD
Indexing angle: 0 or 22.5 degrees (fixed positions)
WORK SPINDLE
Table size (mm): Ø750
Work spindle speed (rpm): 8 – 200 (Stepless)
Output: 3.7/7.5 kW (cont./30 min.)
X-AXIS
Travel to right from work spindle center (mm): 1.150
Travel to left from work spindle center (mm): 250
Traverse feedrate (mm/min): 0 – 16.000
Pulse handle feed, travel/turn: Ø0.01, Ø0.1, Ø5.0
Pulse handle feed, travel/division: Ø0.0001, Ø0.001, Ø0.05
Minimum setting unit: Ø0.0001
Z-AXIS
Travel (mm): 700

Traverse feedrate (mm/min): 0 – 16.000
Pulse handle feed, travel/turn: 0.01, 0.1, 5.0
Pulse handle feed, travel/division: 0.0001, 0.001, 0.05
Minimum setting unit: 0.0001

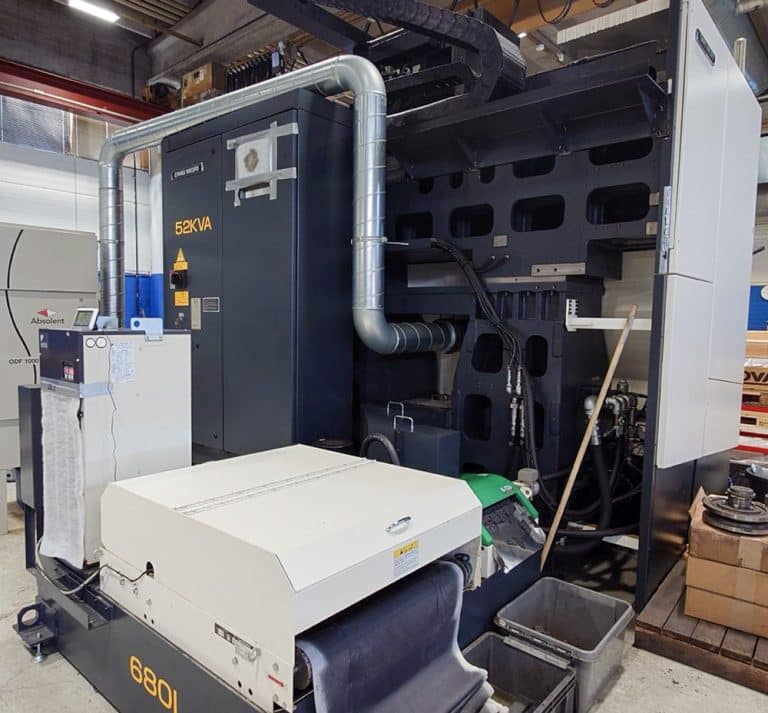

COOLANT UNIT
Tank capacity (L): 680

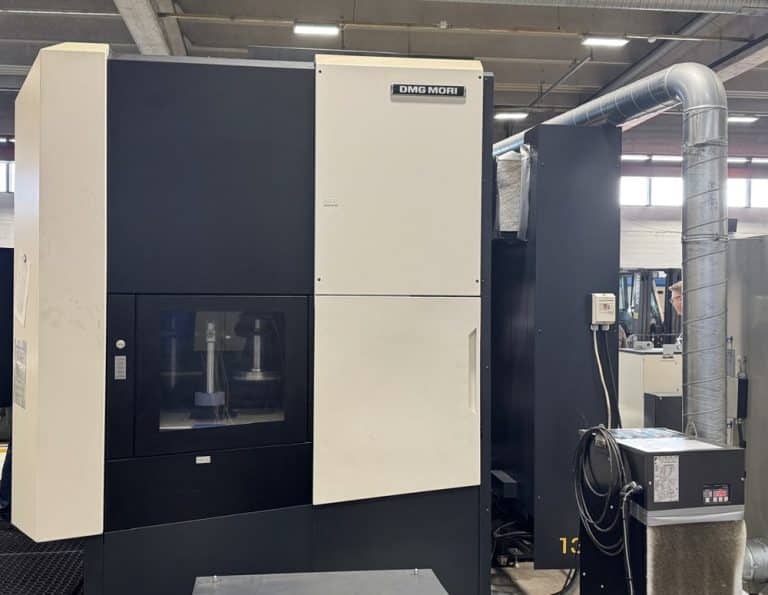

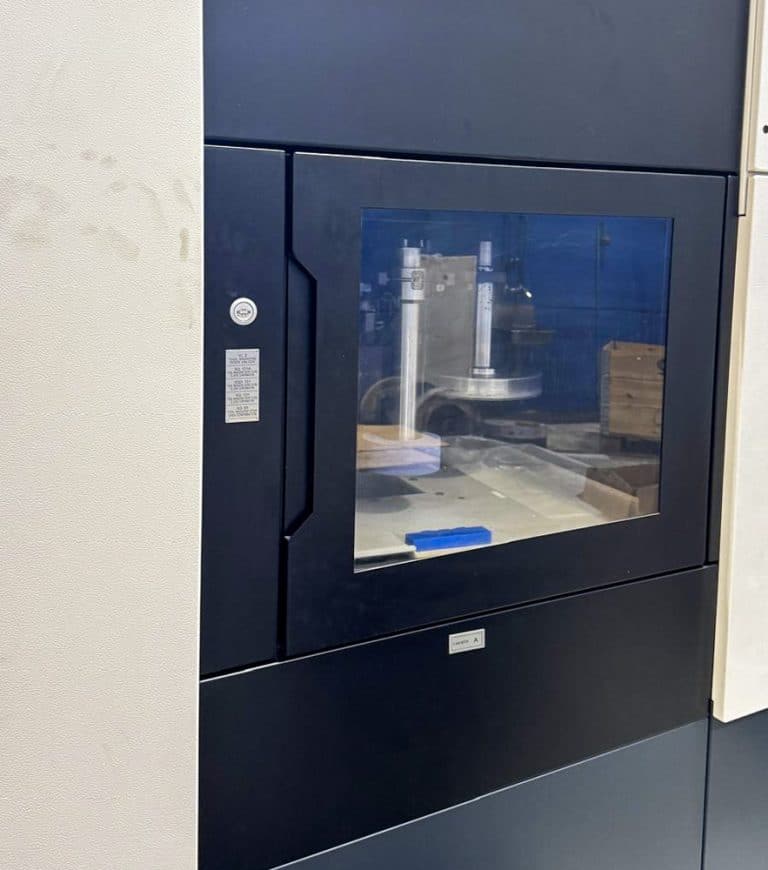

ATC UNIT

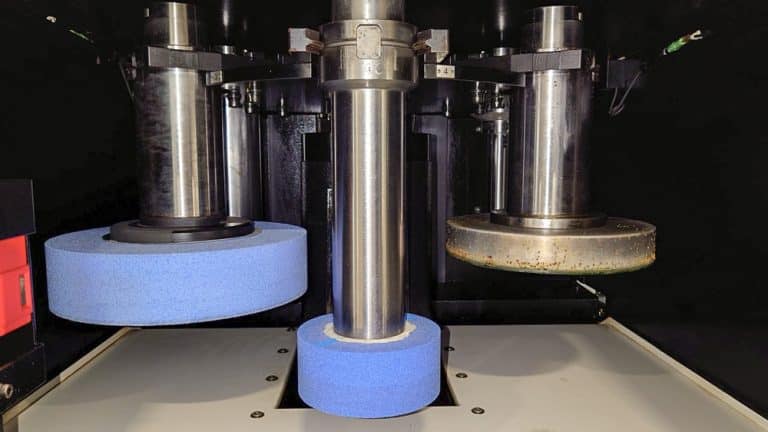

Storage capacity: 6 tools (HSK-A100)
Tool size (with same dia. tools in all positions, mm): Ø250 x 350 L
Tool size (max. , mm): Ø305 x 350 L
Tool size (with adjacent tool , mm): Ø180

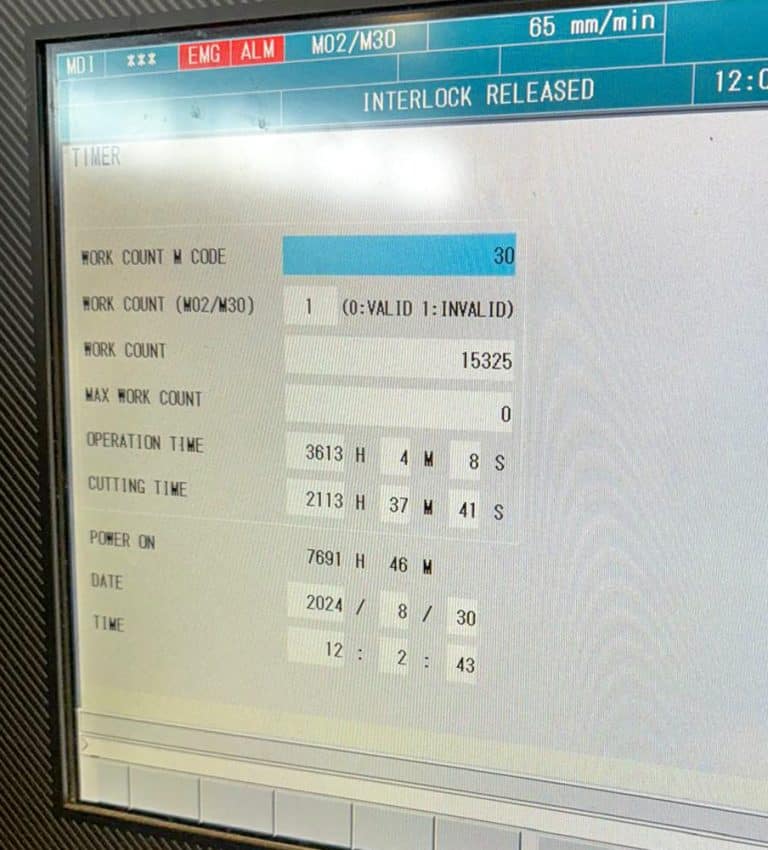

WORKING TIME
Under power: 7.691
Cutting time: 2.113
